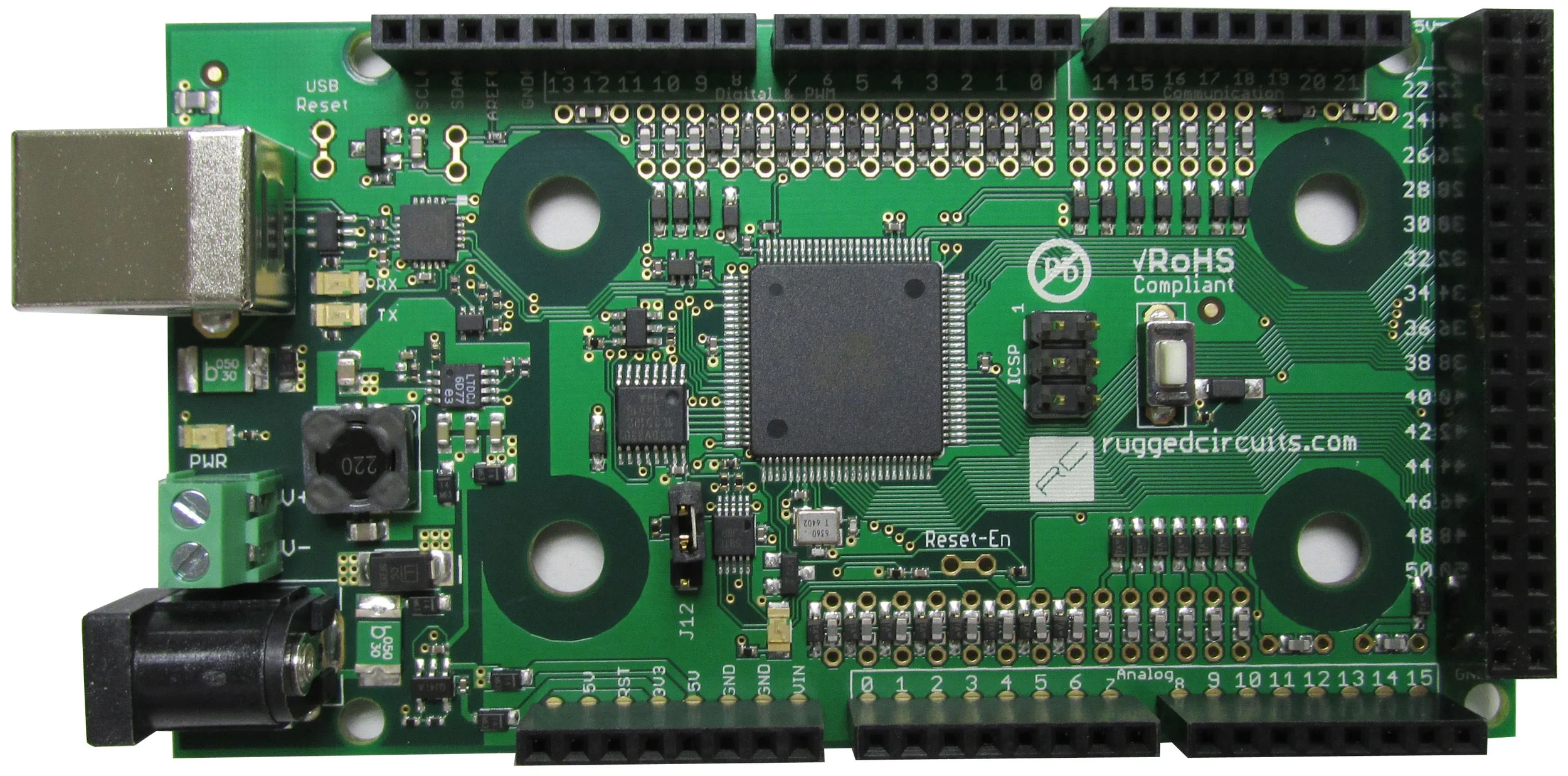

Ruggeduino Mega Top 2.jpg
Mega silk.jpg
Ruggeduino Mega power vin.jpg
sold out

Rugged MEGA ET

99.95

The Rugged MEGA Extended Temperature is here.  Customers wanted an ET version of our best selling Rugged MEGA and we delivered.  All the same great features as the Rugged MEGA with an extended operating temperature threshold of -40C to +85C.  *

Please note that we have handcrafted a very limited batch of the Rugged MEGA ETs.  Approximately 25.  We will be stocking more in the following weeks.

The Rugged MEGA and Rugged MEGA ET have received power supply upgrades and now officially carry our "Industrial Ready" seal.  The reworked power supply offers increased efficiency, quieter operation, and more consistent performance across the entire operating voltage spectrum.

See the difference between the standard Arduino Mega and the Rugged MEGA and the value of the MEGA here on our Technical Information Page.

The Rugged MEGA ET is a ruggedized Arduino-compatible microcontroller board.  It is directly compatible with the Arduino Mega. It uses the same microcontroller (ATmega 2560), same Arduino GUI, same clock frequency, same connectors, and same connector positions.  It differs from the standard Arduino Mega in that Rugged MEGA ET features include overcurrent and overvoltage protection on I/O pins and 5V/3.3V outputs, ESD protection on I/O pins and USB port, total microcontroller overcurrent protection, and operation at up to 30V.  The Rugged MEGA power section is also more robust, resilient, and efficient.  Fully assembled and ready to work right out of the box. Works with the Arduino GUI and is compatible with Arduino shields and libraries.



Key Features:

Arduino Mega Compatible- Header Locations, Shields, GUI

ATmega 2560

256k Program Memory Space

15 PWM (4 not available if the SPI lines from the ATMega 2560 are sent to the I/O pins for compatibility with non-Mega shields)

Line Protection on 1x8 and 1x10 Headers.   30mA resettable fuses and zeners.

* I/O voltage protection up to 10V

Built-in DIN Rail Mounting holes

3.3V and 5V output pin protection withstands 30V

Vin Reverse Voltage Protection up to 30V

Operating Temp -40C - +85C

Operating Voltage Range 3.5V - 30V

Size 3.91" x 2.1"



The Rugged MEGA ET mates the increased processing power and connectivity of the ATmega 2560 with all the great protection features of the Ruggeduino-SE.
