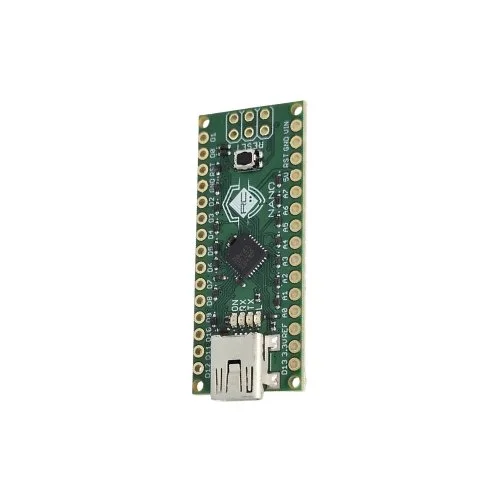

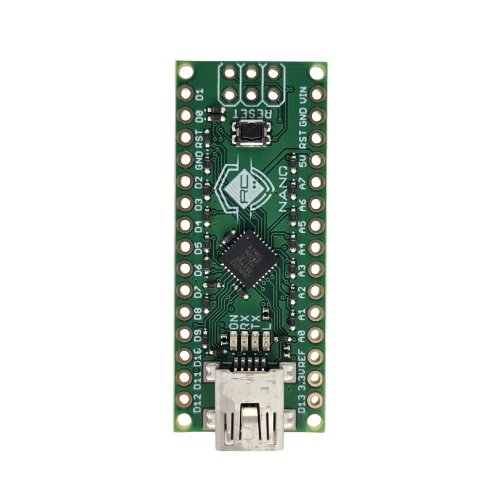

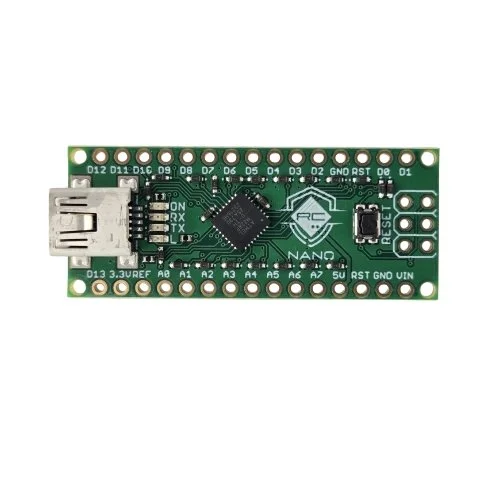

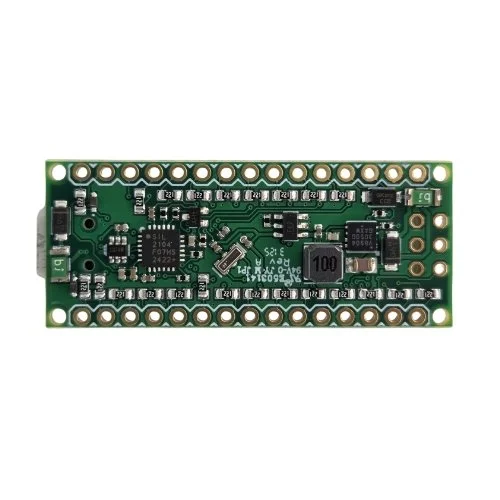

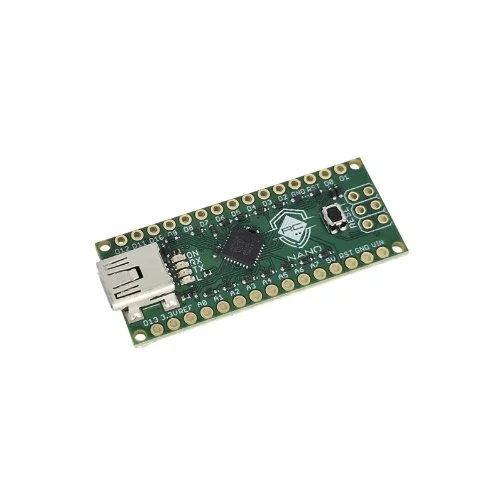

Introducing the New Rugged NANO-ET Compatible 328P 5V Microcontroller

The Rugged NANO replaces our Ruggeduino MINI SMALLs platform. The Rugged NANO offers the same performance but in an even smaller package. The New Rugged NANO shares the same size/layout of the Original 5V Arduino Nano and is compatible with shields designed for the 5V Arduino Nano. This is the best Industrial Ready Arduino Nano platform available!

BENEFITS:

Lightweight

Compact

Rugged Circuits protection

Efficient power supply

Increased operating voltage range

Increased GPIO functionality and voltage thresholds

Flexible header connectivity

FEATURES:

AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 32KB (16K x 16) FLASH 32-VQFN (5x5)

4.5V-28V Input Voltage

5V Logic

500 mA USB Protection

USB Overvoltage TVS

CP2104 USB -> Serial

I2C Pins SDA/A4 Pin 23 and SCL/A5 Pin 24

VIN Overvoltage TVS

SCK LED

Power LED

TX/RX LEDs

200mA VIN PTC

Microcontroller Total Current Limiting

PTC and Zener Protection up to 10V on GPIO

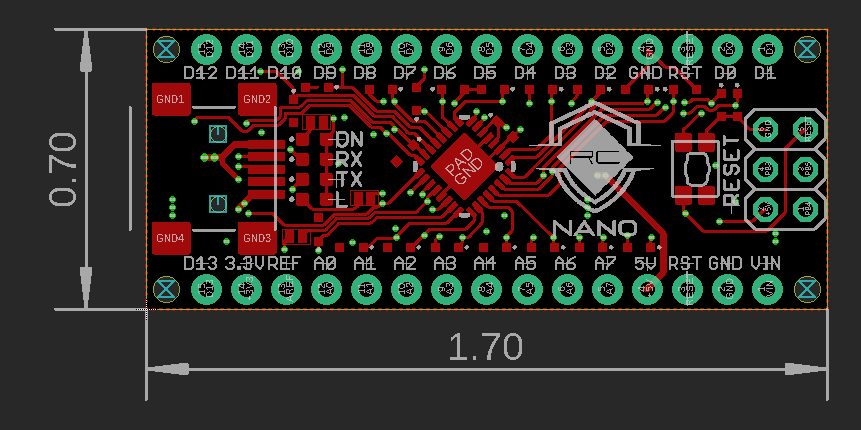

Extremely Small 0.70” x 1.70” Footprint

Compatible with Arduino Nano 5V Shields

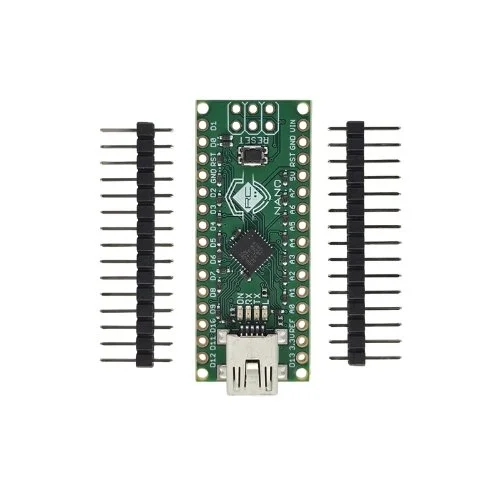

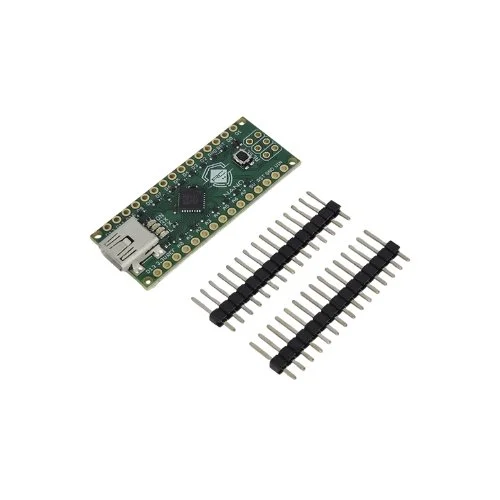

Headers are included and not installed.

Add ST Screw Terminal and DIN Rail Connectivity with the Rugged Secure Shield Breakout Board upgrade available here:

https://www.rugged-circuits.com/accessories/rugged-nano-secure-shield-din-kit
