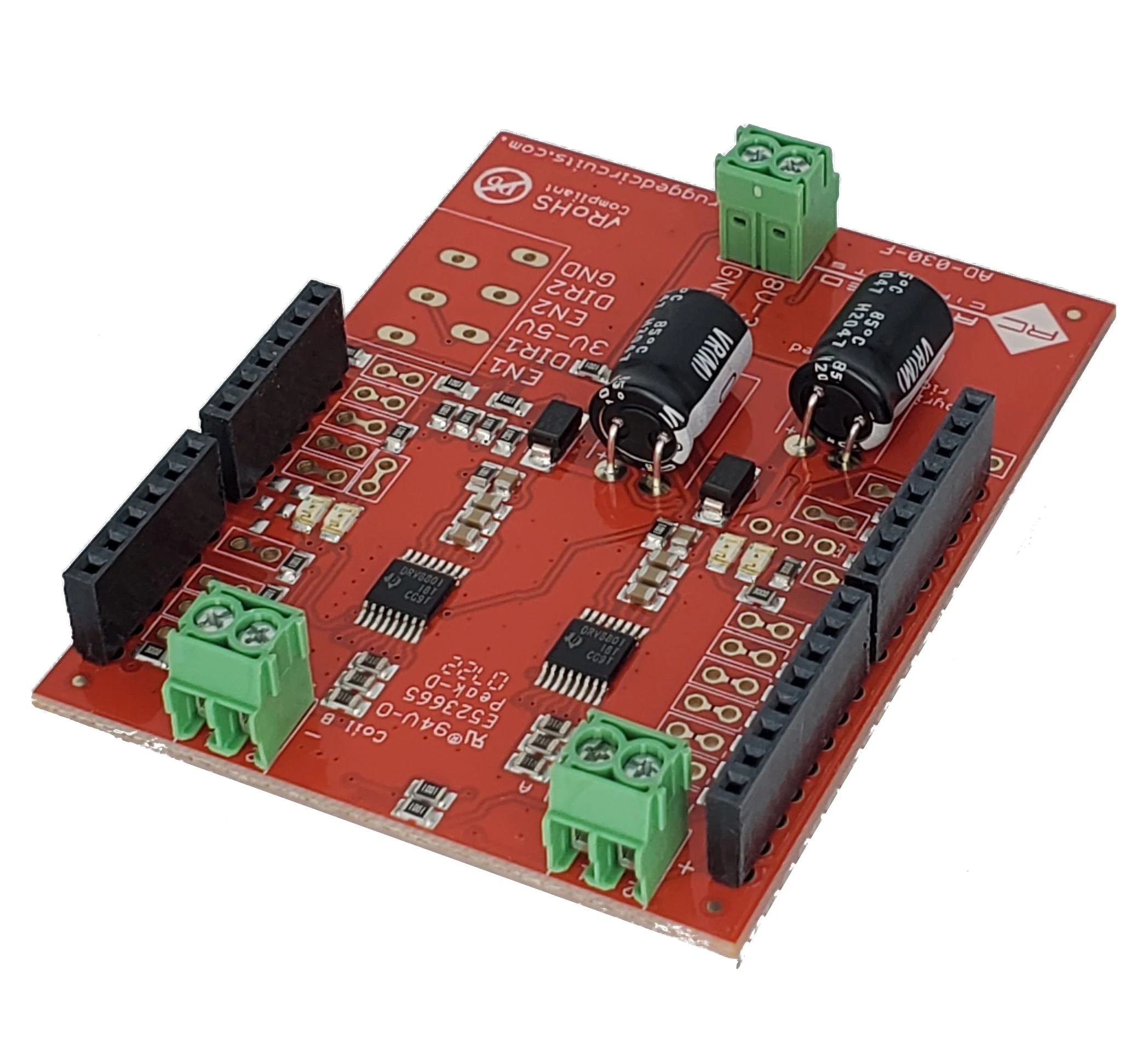

Introducing the Rugged Motor Driver Anniversary Edition RED. Our best selling motor control product since 2007 updated with specially selected components and a bright and bold RED PCB. Incredibly reliable performance trusted by users across the globe in high-profile applications. What makes it so special? The design. For starters its Rugged design is constructed with extra heavy duty copper traces in the PCB for increased performance and improved thermal handling characteristics. The components on the board have been selected for performance. The connectors have been picked for durability. Combined with all the safeguard features, listed below, the design is built to endure. Up to 3 Rugged Motor Drivers can be stacked on a single Ruggeduino or Rugged MEGA.

These test results demonstrate the performance difference between the competition and the Rugged Motor Driver Rugged Performance

The Rugged Motor Driver also provides these safety features that the competition does not:

Peak DC current 2.8A

Over temperature protection

Over current protection

Shorted motor protection

DMOS Construction

Synchronous rectification

2000V Electrostatic discharge protection!!

What does this mean? The Rugged Motor Driver will outperform and outlast standard motor drivers of comparable price for your important applications.

New Upgraded Rugged Motor Driver. Upgrades include more robust stacking headers and and 2-pin screw terminals. The manufacturing process has been improved with the use of higher quality parts and processes. The new Upgraded Rugged Motor Driver is more durable and will operate more reliably than the already Rugged original!

The Rugged Motor Driver shield is a motor driver for two brush DC motors or one bipolar stepper motor. Rated for 30V and 2.8A peak current operation, the Rugged Motor Driver is the solution for powerful motion. The shield is directly compatible with the Ruggeduino, Ruggeduino-SE, and Ruggeduino-ET, Arduino Uno, Duemilanove, and Mega, or can be used as a standalone motor driver with any microcontroller board. What makes it rugged? Protection against reverse voltage, shorted motors, electrostatic discharge, overcurrent, and overtemperature. Fully assembled and ready to work right out of the box, the Rugged Motor Driver delivers power and ruggedness at an affordable price.
