Ruggeduino MINI SMALLS-SE ST "Screw Terminal"

RMS ST.jpg
mini w headers 2m.jpg
RMS ST1.jpg
RMS ST2.jpg
RMS ST3.jpg
Screen Shot 2017-10-19 at 8.23.55 PM.png
MINI Pinout.png
RMS ST.jpg
mini w headers 2m.jpg
RMS ST1.jpg
RMS ST2.jpg
RMS ST3.jpg
Screen Shot 2017-10-19 at 8.23.55 PM.png
MINI Pinout.png

Ruggeduino MINI SMALLS-SE ST "Screw Terminal"

$74.95

Our BEST SELLING Ruggeduino in Miniature.

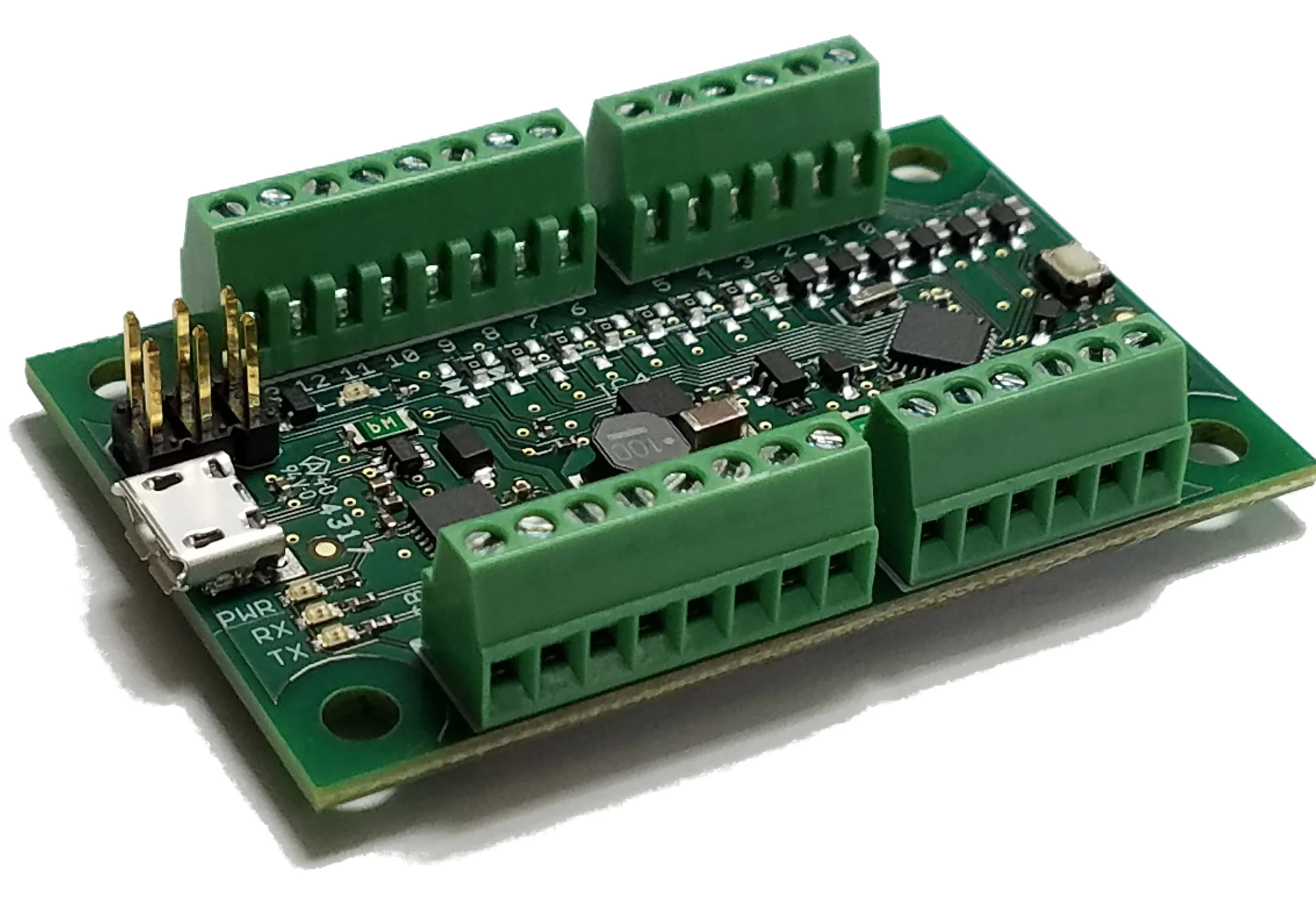

You asked. We delivered. Ready to Integrate-Now with Screw Terminals factory installed

“We are constantly asked to push the limits for smaller and smaller electronic installations. The Ruggeduino MINIs allow us to meet those expectations while still having the power of the Ruggeduino UNO. It's been a great addition to our toolset.” -Knabe Labs

Now with even more GPIO protection! The newest addition to our microcontroller product line is a POTENT POWER HOUSE! We call it the Ruggeduino MINI SMALLS but there is nothing Mini about the feature set. Engineered around the AVR® ATmega Microcontroller IC with 8-Bit 20MHz 32KB operation, this is essentially a Ruggeduino-SE in miniature. Take note this is more than just a Mini. It's a MINI SMALLS.

Our customers asked for a smaller sized version of our very popular Ruggeduino-SE to allow them to squeeze all of the great features and reliability of a Ruggeduino into their compact design. While challenging from an engineering standpoint, we listened. The layout has been carefully designed to offer huge performance in a very compact yet efficient footprint. The small size also packs a more powerful punch than standard Mini boards. Here is the reason- standard Arduino Minis have a linear power supply which are not intended to be taxed. When the current goes up the amount of heat produced increases drastically. We have designed the Ruggeduino MINI SMALLS with a Switching Power Supply which is much more efficient and generates less heat and therefore capable of sourcing more current. The PCB has also been carefully designed to dissipate heat better than a standard Mini which has a very small thermal mass to dissipate heat. Overheating leads and Ruggeduino MINI SMALLS was designed to be keep its cool. The result is the Ruggeduino MINI SMALLS can do things a Mini simply can not.

Operating voltage thresholds have also been increased to 28V to allow integration with 24V systems. Again, standard Minis can not operate at this level.

We have taken what we have learned from the Ruggeduino-SE and rolled it into this great package measuring 1.4" X 2.16"

BENEFITS:

Lightweight

Compact

Rugged Circuits protection

Efficient power supply

Increased operating voltage range

Increased GPIO functionality and voltage thresholds

Flexible header connectivity

FEATURES:

AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 32KB (16K x 16) FLASH 32-VQFN (5x5)

4.5V-28V Input Voltage

5V Logic

500 mA VUSB Protection

USB Overvoltage TVS

CP2104 USB -> Serial

I2C Pins A4 and A5. PC4 and PC5 are ADC4/SDA and ADC5/SCL

2X6 Programming Header

VIN Overvoltage TVS

SCK LED

Power LED

TX/RX LEDs

Mounting Hole Diameter 3.5MM

200mA VIN PTC

Microcontroller Total Current Limiting

PTC and Zener Protection up to 24V on D0-D13 and A0-A5

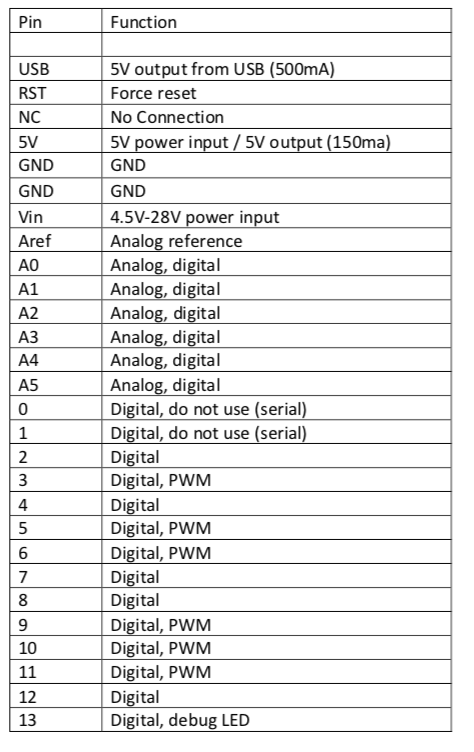

PIN OUT MAP

Available in the picture section of this page.

Drivers

Silabs:

https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads

Linux: https://www.silabs.com/documents/login/software/Linux_3.x.x_4.x.x_VCP_Driver_Source.zip

GPIO SPECS:

The input thresholds for the microcontroller pins:

24V Max input on A0-A5 and D0-D13

Guaranteed high at 0.7*VCC

Guaranteed low at 0.3*VCC

The microcontroller runs at VIN or VCC minus 0.3V with an upper limit of 5V. If running off USB, that puts the thresholds at approximately (5-0.3)*0.7 = 3.29V, and (5-0.3)*0.3=1.41V

The microcontroller pins are rated to source an ABSOLUTE maximum of 40mA. The PTCs on the protected pins will trip in the ~30mA range and start limiting current.

Operating Temperature -10C to +85C

Header outputs are on 0.100" Pitch. Headers or pins are included with the “ST”
