Rugged Serial Breakout

8.95 15.95

The Rugged Serial Breakout is a dual-channel level translation board for working with RS232 interfaces. It allows you to connect digital serial signals (0V-5V or 0V-3.3V) to RS232-level signals (nominally +/-10V).

Two independent channels allow you to use a single set of TxD/RxD signals or optionally add RTS/CTS hardware flow control. Or, you can use the second channel for a completely separate second TxD/RxD interface.

Fully assembled and ready to use right out of the box. The dimensions are 0.90" x 1.06".

Quantity:
Add To Cart

This product is really useful for working with RS232-level serial interfaces, which are nominally at +/-10V thus not directly compatible with microcontrollers that work at 0V-5V or 0V-3.3V.  RS232-level serial interfaces are still common on industrial equipment, PLC's, smart motor drivers, etc.

The breakout board comes with 3 connectors:

  • a power connector, where you must apply 3.3V-5V. The current draw here is very low, typically no more than 1mA.
  • an RS232 connector where you connect RS232-level signals (nominally +/-10V, +/-25V absolute maximum)
  • a LOGIC connector where you connect microcontroller signals (0V-3.3V, or 0V-5V)

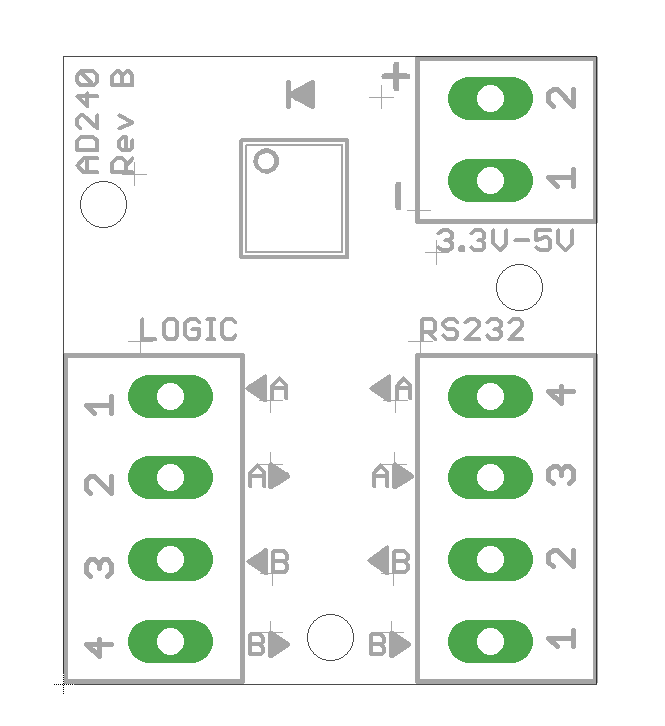

The silkscreen on the PCB shows the direction of data flow for each of the two independent channels, A and B. Remember to connect all of the grounds together!

For reference, here is the breakout board schematic. The Rugged Serial Breakout Board was designed and assembled in the USA using lead-free materials and processes.
